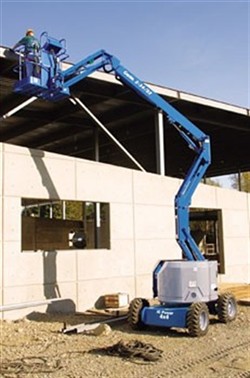

Genie Z34-22 IC Articulating boom personell lift
  • The Z-34/22 IC Series combines the industry leading lift structure with an unbeatable engine package.
  • A new drive system, with a high quality axial piston pump and integrated controls, provides the smooth control, durability and efficient power transmission required for rough terrain operation.
  • Two-speed hydraulic motors provide optimum speed and torque. The 2WD model operates at 0.68 - 3.0 mph (1.1 - 4.8 km/h) with 37% gradeability. The 4WD model operates at 0.68 - 3.0 mph (1.1 - 4.8 km/h) with 45% gradeability.
  • Zero tailswing and nose swing in all positions, with a 68 in (1.73m) wide 2WD model and 73 in (1.85 m) wide 4WD model, provide excellent maneuverability in confined areas.
  • Dual parallelogram riser allows ascent and descent along a vertical plane without retraction or extension of the boom.

  • 40 ft 10 in (12.62 m) working height
  • 22 ft 3 in (6.78 m) horizontal reach
  • Compact 68 in (1.73 m) wide 2WD model and 73 in wide (1.85 m) 4WD model
  • 500 lb (227 kg) platform capacity
  • 4 ft (1.22 m) jib features 139° working range
  • Dual wheel spring-applied brakes
  • Fully proportional controls
  • 180° powered platform rotation
  • Auxiliary power unit
  • Drive enable system
  • Self-leveling platform
  • Water, oil and voltage gauges
  • AC wiring to platform
  • Hour meter
All Ogies rentals come with maintenance
All Ogies Rentals  have a current Ontario Lifting Device Inspection

Ask about our
operators training for aerial equipment

 Click here for a full specification sheet

Click here for a Range of Motion chart.

Click here for a OEM descriptive brochure

   Call, Fax or E-mail for rental and delivery rates and availability
