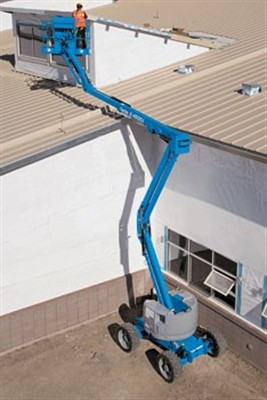

 Genie Z45-25 IC Articulating boom personell lift
  • The Z-45-25 IC Series combines the industry leading lift structure with an unbeatable engine package.
  • A new drive system, with a high quality axial piston pump and integrated controls, provides the smooth control, durability and efficient power transmission required for rough terrain operation.
  • Two-speed hydraulic motors provide optimum speed and torque. The 2WD model operates at 0.68 - 3.0 mph (1.1 - 4.8 km/h) with 37% gradeability. The 4WD model operates at 0.68 - 3.0 mph (1.1 - 4.8 km/h) with 45% gradeability.
  • Zero tailswing and nose swing in all positions, with a 68 in (1.73m) wide 2WD model and 73 in (1.85 m) wide 4WD model, provide excellent maneuverability in confined areas.
  • Dual parallelogram riser allows ascent and descent along a vertical plane without retraction or extension of the boom.

  • 52 ft 2 in (16.07 m) of working height
  • 25 ft 1 in (7.65 m) horizontal reach
  • Up and over clearance of over 23 ft 6 in (7.16 m)
  • 5 ft 6 in (1.70 m) turning radius
  • 500 lb (227 kg) lift capacity
  • Oscillating axle on 4WD models
  • Fully proportional controls
  • Hydraulic platform rotation
  • 12V DC auxiliary power unit
  • Drive enable system
  • End mount platform on Z-45/25J model
  • AC wiring to platform
  • Tilt alarm
  • Horn
  • Hour meter
  • Rough terrain air tires
 All Ogies rentals come with maintenance
All Ogies Rentals  have a current Ontario Lifting Device Inspection

Ask about our
operators training for aerial equipment

 Click here for a full specification sheet

Call , Fax or e mail for rental and delivery rates and  availability
